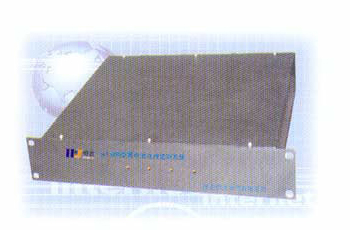

System overview
Online monitoring system of battery network is my company research and development use present situation on battery power, communication, finance and other areas of a set of battery online network management and monitoring system. The system combines real-time online resistance measurement technology and computer network of the latest, successfully resolved the problem of the remote monitoring of the battery, so daily maintenance, charge and discharge the battery activation and resistance test are completed in the network monitoring terminal. For users and management of battery provides a convenient, safe, simple, no time limit, not limited to monitoring and maintenance system.
System features
1 remote activation of the battery (nuclear volume).
2 at any time or regular automatic online measurement of internal resistance of the battery internal resistance, and can be preset alarm threshold.
Analysis of 3 battery health, predict the service life of the battery and the remaining capacity.
All the operating parameters of 4 online real-time monitoring of the battery (single voltage, total voltage, charge discharge current), high measurement accuracy, and can set the alarm threshold.
The 5 engineer station software function, maintenance personnel can visit the internal monitoring network or the Internet using any computer, whenever and wherever possible to directly understand the battery and battery state of health.
6 local roommates alarm output contact and alarm information, can be local or distant developed terminal display.
7 hardware uses the modular design, the module independence is good, online maintenance and strong.
Flexible system technology can be customized by software 8.
Technical indicators
The sampling frequency of 10 times / sec
Voltage measurement accuracy ≤ 0.2%
Current measurement accuracy ≤ 0.2%
Resistance measurement accuracy ≤ 2%
Residual capacity measurement accuracy ≤ 10%
Battery temperature measurement error less than ± 0.5%
Environment temperature measurement error less than ± 0.5%
The ambient temperature measurement range -50~75 ℃
Software operating system Windows 95/98/2000/NT/XP/VISTA
The insulation resistance of 1000V ≥ 500M ohm.
Insulation strength ≥ 2000VAC 50HZ

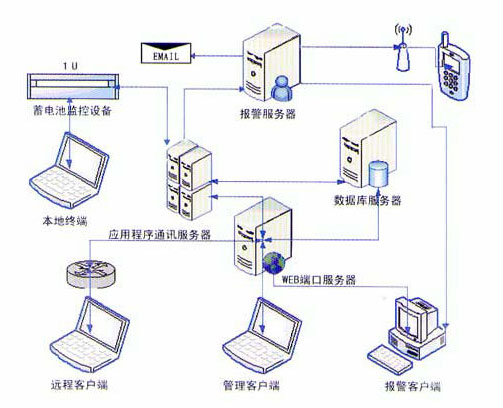

The software system structure
The testing principle and structure
1 battery detection system is regulated lead-acid battery for valve (VRLAB) design operation management, used to run the state monitoring of the battery, the report lag and failure battery, event history, local monitoring, can also provide the field operation data through computer network, centralized monitoring and management.
Measuring system with high speed, high accuracy 2, measure the battery voltage, current, internal resistance.
3 acquisition of a single battery voltage, charge and discharge current, temperature and the formation of records; with the acquisition of the internal resistance of the battery current resistance records; determine the remaining battery power with changes in the current voltage recording, recording, internal resistance of battery parameters, battery voltage, and resistance; with the current voltage recording, resistance records and set alarm conditions generate alarm record and real-time alarm to users, and timing or the alarm when the current record into the historical record.
Accurate measurement of single battery 4 use "direct method for dynamic load method".
5 measured in accordance with the laws of science, online "positive" measurement of single battery internal resistance.
6 years summary of the mathematical model of the residual capacity of battery battery expert, prediction, and health level in diagnosis of battery.
7 for the current sensor battery charging and discharging current, temperature sensors to collect environmental temperature and cell temperature, direct cycle measurement of single battery voltage.
The 8 alarm events recorded immediately after reporting to the computer analysis software, analysis software can be real-time or periodically from the monitoring device extraction current or historical records, analysis software according to the obtained data to perform necessary tasks.
Software features
Convenient management: the battery will software and hardware installation, monitoring and control of battery can be at any of their network location within the authority.
Easy to use: application of smart client, the network can use the automatic installation, automatic updates.
Acquisition precision: data acquisition accuracy percentile.
Sound function: the system set up monitoring, management, control and data analysis. Almost all commonly used functions.
Software development: using the current world's most advanced VS.NET2005 development software of the most powerful, to use the.Net Technology
Database: the use of the large SQLServer2005 database.
System interface: the operation is simple, easy to master.
The software function
System settings: the alarm to accept a person, discharge planning and communication server detailed settings, and alarm definition, diagnosis results, state state resistance loop state, charger, battery string state state.
Setup function: the realization of the master station, sub station is set up, and the remote monitoring equipment, battery charger (battery), set the parameters of the battery string.
User management functions: user divides into five levels: the system administrator, the administrator, the master station, sub station operators administrator, sub station operators, the functions of each user to add, delete and modify.
User management functions: user divides into five levels: the system administrator, the administrator, the master station, sub station operators administrator, sub station operators, the functions of each user to add, delete and modify.
Alarm function: it can sound and light, EMAIL, short messages, the time for your prompt alarm information. When the battery failure or to the activation of the battery to discharge, the system will automatically prompts the user, the user in the prompt guidance to handle the event.
Can display real-time state of battery battery string and discharge power supply time according to the current load.
Equipment monitoring function: to achieve time synchronization equipment monitoring, discharge application, check, internal resistance measurement, voltage measurement, battery charger, diagnosis, record voltage recording data acquisition control box.
The data processing function: the data analysis of data in a single cell or whole group form, get the data table and icon, the charging and discharging process of playback, and detailed analysis and processing of alarm information. Receiving the current and historical records, voltage resistance record and alarm event records from the monitoring equipment.
Analysis of received data recording, display graph, table, the trend line.
To alert the user to a specific event.
Generate analysis report.

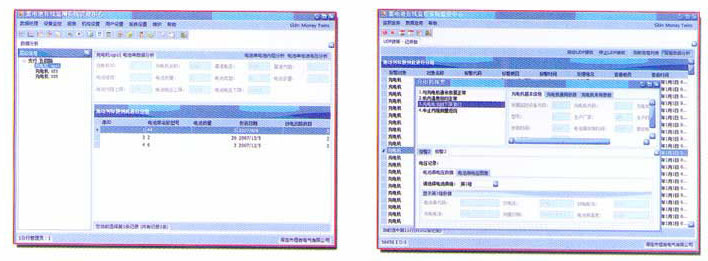

System interface
Product classification
|
Model |
The number of cells (only)
|
|
The total voltage（V）
|
Single voltage（V）
|
Internal resistance（mΩ）
|
Connection resistance（mΩ）
|
The total current（A）
|
|
HJ3008
|
256
|
Measuring range
|
600
|
0~16
|
0~99.99
|
0~5
|
0~1000
|
|
Measurement precision
|
1%
|
0.1%
|
2%
|
0.1%
|
±1
|
||
|
HJ3018
|
110
|
Measuring range
|
300
|
0~16
|
0~99.99
|
0~5
|
0~1000
|
|
Measurement precision
|
0.5%
|
0.1%
|
2%
|
0.1%
|
±1
|
||
|
HJ3028
|
48
|
Measuring range
|
200
|
0~16
|
0~99.99
|
0~5
|
0~1000
|
|
Measurement precision
|
0.1%
|
0.1%
|
2%
|
0.1%
|
±1
|
||
|
HJ3038
|
24
|
Measuring range
|
100
|
0~16
|
0~99.99
|
0~5
|
0~1000
|
|
Measurement precision
|
0.1%
|
0.1%
|
2%
|
0.1%
|
±1
|
Safety index
Safety index system conforms to the GB4793-84 standard.
Series battery monitoring system is designed to give full consideration to the various situations and accidents on the system itself and the system of all kinds of equipment supporting the use of impact, the more impact zero export high fault tolerance method, detection equipment all uses high performance components, the system has the characteristics of high safety monitoring system with self checking function. Independent operation abil. Independent operation ability is very good, is not affected by the working condition of the user's system, also do not affect the user system, internal resistance measurement only in battery group in the state of floating charge of. Although the discharge current is high, but because the discharge is the discharge circuit in the battery pack with high power and low resistance for 6 battery and device in a just a few seconds, discharge, and the device itself is a good heat dissipation and Ge Yu measures (high power low resistance discharge resistance with special heat sink, fan, each discharge loop line fuse resistance measurement device, module and other modules with even isolation etc.), so the resistance measurement is safe, will not affect the battery safe operation of the power supply system of series battery monitoring system fully consider the characteristics of electromagnetic compatible in the circuit design and structure design, electromagnetic radiation the amount is less than the national standard, has the shielding effect is very good, the system itself to the outside world without any electromagnetic interference.
