Online monitoring system of storage battery network

System overview
YX ZXJC series is our use of the latest intelligent battery parameter sensor technology, in view of the present situation of military communication, using the battery, power, finance and other areas, the development of a new battery online network management and monitoring system. The system combines the online battery internal resistance measurement technology and computer network communication technology, successfully resolved the battery remote monitoring and maintenance problems, makes the battery daily maintenance work are completed in the network monitoring terminal. Provide a convenient, safe, simple, no time limit, no limit to the monitoring and maintenance system for users and management of battery maker.
System features



Analysis of 1, battery state of health, by measuring the voltage, the battery internal resistance, temperature, float charging current, charging current, the discharge current, the horizontal type of mathematical analysis, the potential supply capacity of the battery can distinguish (Ju Yu capacity), internal fault and failure battery battery.
2, the intelligent battery parameters (voltage, resistance, temperature sensor).
3, at any time or regular automatic on-line measurement of battery internal resistance, internal resistance change rate, and can be preset resistance, internal resistance change rate of alarm threshold.
The operation parameters of 4, online real-time monitoring the battery (total voltage, single voltage, charge current, pressure, discharge current, float current, pole temperature, ambient temperature), high measurement accuracy, and can set alarm threshold.

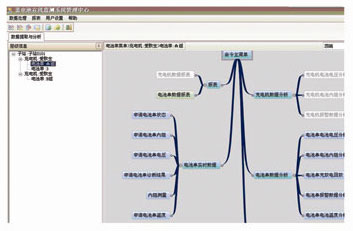

Flexible system for regular use 5, software.
6, support for multiple alarm output mode: node, network, mobile phone, SMS, email.
7, support engineer station operation.
8, 8 road into the independent acquisition unit, 8 out of independent control unit, can be extended, for the battery of long-range nuclear volume, optimization, simulation of AC power check and maintenance work.
Technical indicators
Sampling frequency: 10 times / sec (set);
Current measurement error: charge and discharge current ≤ 1%, float current ≤ 0.5%;
Residual capacity measurement error: < ± 10%;
The internal resistance of the alarm setting assistant degree: 0.001 m;
Insulation resistance: ≥ 5000 m Ω 1000V
Voltage measurement error: < ± 0.2%;
Resistance measurement error: < ± 2%;
Error: the battery temperature ≤ ± 0.5%;
Software operating system: Windows 95 / 98 / 2000 / NT / XP/VISTA;
Dielectric strength: 50HZ ≥ 2000VAC

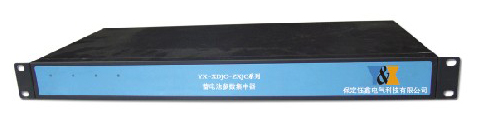

The hardware system structure

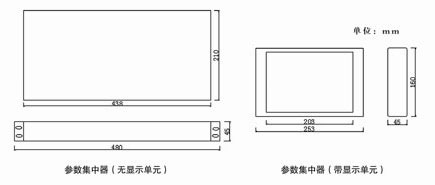

Size chart
